1-1000mbar Vacuum Controller Single Point Programmed Control

Name: 11000mbar Vacuum Controller Single Point Programmed Control
Brand: HiYi
Price: 1045 USD

Brand Name : HiYi

Model Number : vc100

Certification : CE

Place of Origin : China

MOQ : 1

Price : $1045-$1300 / Piece

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 10000 set/month

Delivery Time : 3-7 days

Packaging Details : paper carton

Name : Vacuum Controller vc100

Vacuum setting range : 1-1000mbar

Setting method : Touch screen setting

Connector diamete : 8mm

Overall dimensionsW×D×H : 189×207×193mm

weight : 4.0KG

Contact Now

HiYi Widely Range 1-1000mbar Single-Point Programmed Control Medicine Chemicals Using Vacuum Controller

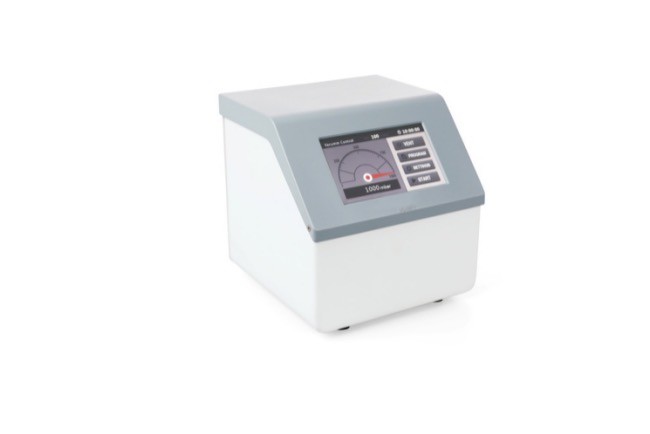

VC100 Vacuum Controller

FEATURES

• Two control modes of single-point control and programmed control available for choice as needed

• Can store up to 5 programs, each containing up to 5 segments of programming control

• A large-size TFT touch screen display control allows easy operation

• All parts in contact with vapor or liquid are made of PTFE, ceramics or other high-performance materials and can effectively resist corrosion caused by organic solvents, water, acid and alkali

• A built-in vent valve can feed inert gas into system equipment

• One-stroke decompression allows easy installation and dismantling of vacuum system

• Can be connected with pump power control for temporary shutdown of pump power supply after reaching stable degree of vacuum for energy conservation and environmental protection. Can also be operated in the normally open statue of pump

1-1000mbar Vacuum Controller Single Point Programmed Control

PATAMETER

Specifications	VC100
Vacuum setting range	1-1000mbar
Vacuum measurement range	1-1000mbar
Control operation mode	Single-point control mode, Programmed control mode
Control program	Can store up to 5 programs, each containing 5-step control (capable to set the degree of vacuum and time)
Setting method	Touch screen setting
Display	5'' TFT
Sensor overload pressure	1,500mbar
Connector diameter	8mm
Materials in contact with vapor	PTFE, PP, silicone and ceramics
power	600w
Overall dimensionsW×D×H	189×207×193mm
weight	4.0KG
Power supply	110—240V,50Hz/60Hz
Operating environment	10℃～40℃,≤80%RH
